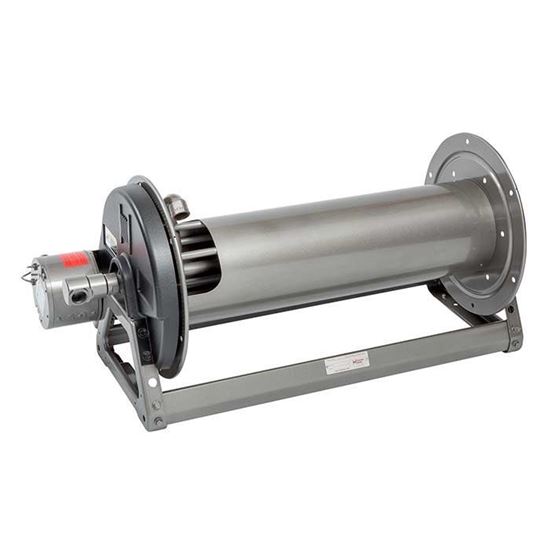

Hannay 4028-17-18-C 4000 Series Hose Reel

Hannay 4000 Series Manual Rewind Reels to handle single 3/4" or 1" I.D. Hose.

Manufacturer:

Oldham Pump

Mfg Part #:

4028-17-18-C

SKU:

650-E4028-17-18-C

$1,200.02

8 in. reel
Lightweight, compact reels designed for long lengths of hose in manual and power rewind
Direct crank rewind is removable
Chain and sprocket drive powered by electric, hydraulic, or compressed air motor
Manual reels include cam-lock drag brake, spring-actuated pin lock
Comet brake is standard on power rewind reels
Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
Standard outlet: 1" female NPT threads
Optional rollers: specify roller position when ordering
Standard pressures to 2,000 psi (138 bar), available up to 4,000 psi (276 bar) – must specify
Temperatures from -60° F to +250° F (-51° C to +121° C)
Consult mdi for other pressures and temperatures
